Scott's 3AJ restore

User avatar
55W1985
Almost there
Almost there
Posts: 769
Joined: Sun Apr 03, 2011 6:46 am
What Bike or Bikes Do You Own?: XR 650L 1994,XT 600Z 55W 1985
Previously Owned Bikes: CX 500 1981,R-80G/S PD 1987
Location: Buenos Aires,ARGENTINA
Contact:

Re: Scott's 3AJ restore

Post by 55W1985 » Tue Jul 23, 2013 3:46 am

You will encounter 2 problems with ebay.de some dont take paypal but ship international. Or some take paypal and don´t ship abroad!!!!!! And other do both.....You need to be persitant.Ask and offer them the paypal fees on your cost if the part is cheap.I do that all time with excellent results.
Good luck!
XR650L(1994) 55W (1985)

User avatar
xtrider
Financial
Financial
Posts: 542
Joined: Mon Jun 17, 2013 11:21 pm
What Bike or Bikes Do You Own?: 88 XT600 Yamaha , , 525XC KTM, '96 Kawasaki KLX650 , '05 Suzuki DRZ400, Suzuki LTR450
Previously Owned Bikes: 91 DR 650 Suzuki, 81 DS250 Suzuki, 73 ?250 Yamaha ,05 KLR650 , '02 DR650 Suzuki, Honda XL600R
Location: Wisconsin, USA

Re: Scott's 3AJ restore

Post by xtrider » Tue Jul 23, 2013 3:09 pm

Tell me about it, there is a bottom end I want to buy on there right now a the guy won't ship to the US because of "costs to high, takes too long to ship,and too many problems?). Soooo, anybody willing to get it for me and ship to the US(my dime of course)?
'08 Husqvarna TE510 .. //..'05 Suzuki DRZ470 stroker bbore..//..'95 & '96 Kawasaki KLX650 ..//..'88 XT600 ..//.. '86XT600(body)3TB hi comp motor ..//.. '06 Suzuki LTR450 ..//
'09 525XC KTM .. //.. '85 XT600/660 (660 Raptor bottom)

User avatar
doghouse
No Gold Stars Yet
No Gold Stars Yet
Posts: 46
Joined: Sat Sep 01, 2012 10:26 pm
What Bike or Bikes Do You Own?: xtz660 3YF
Xl650V
Previously Owned Bikes: Suzuki AP50, Yamaha FS1E, Kawasaki KE125, Honda CB125Twin, Yamaha DT175dx, Yamaha RD250LC, Yamaha XJ550, Honda VF500F2, Yamaha RD500LC, Honda CBR600, Yamaha FZ750, Suzuku GSX750ESD, Yamaha XJ900, Yamaha FJ100, Yamaha FJ1200, Honda CX 500 x 3, Kawasaki GT550, Honda NTV600, Aprilla Pegaso, Bmw 1100s, Yamaha XTZ660, and quite a few more than slip my memory
Location: West Sussex, UK

Re: Scott's 3AJ restore

Post by doghouse » Tue Jul 23, 2013 7:20 pm

We have offices in Stuttgart and Frankfurt if you send me all the info I should be able to sort something out dependent on the seller.
OR
If you have a DHL, TNT or UPS account it will cheapest to get them to collect.

Let me know?

Adrian
Everything can be fixed with the correct application of the right sized hammer.

User avatar
xtrider
Financial
Financial
Posts: 542
Joined: Mon Jun 17, 2013 11:21 pm
What Bike or Bikes Do You Own?: 88 XT600 Yamaha , , 525XC KTM, '96 Kawasaki KLX650 , '05 Suzuki DRZ400, Suzuki LTR450
Previously Owned Bikes: 91 DR 650 Suzuki, 81 DS250 Suzuki, 73 ?250 Yamaha ,05 KLR650 , '02 DR650 Suzuki, Honda XL600R
Location: Wisconsin, USA

Re: Scott's 3AJ restore

Post by xtrider » Wed Jul 24, 2013 12:51 am

It apparently sold today, if that what "beendent" means in Greman?

As for the UPS account, I can use my work account for having stuff shipped to, how would that work, do a call out for them to pickup from the sellers place?


dang another full motor, http://www.ebay.de/itm/Yamaha-XT600E-XT ... 35c4b1c619, if only I had enough $$ right now, I NEED that bottom end!!
'08 Husqvarna TE510 .. //..'05 Suzuki DRZ470 stroker bbore..//..'95 & '96 Kawasaki KLX650 ..//..'88 XT600 ..//.. '86XT600(body)3TB hi comp motor ..//.. '06 Suzuki LTR450 ..//
'09 525XC KTM .. //.. '85 XT600/660 (660 Raptor bottom)

User avatar
doghouse
No Gold Stars Yet
No Gold Stars Yet
Posts: 46
Joined: Sat Sep 01, 2012 10:26 pm
What Bike or Bikes Do You Own?: xtz660 3YF
Xl650V
Previously Owned Bikes: Suzuki AP50, Yamaha FS1E, Kawasaki KE125, Honda CB125Twin, Yamaha DT175dx, Yamaha RD250LC, Yamaha XJ550, Honda VF500F2, Yamaha RD500LC, Honda CBR600, Yamaha FZ750, Suzuku GSX750ESD, Yamaha XJ900, Yamaha FJ100, Yamaha FJ1200, Honda CX 500 x 3, Kawasaki GT550, Honda NTV600, Aprilla Pegaso, Bmw 1100s, Yamaha XTZ660, and quite a few more than slip my memory
Location: West Sussex, UK

Re: Scott's 3AJ restore

Post by doghouse » Wed Jul 24, 2013 6:23 pm

Exactly that.
You can get them to collect or get the guy to drop at a depot.
Everything can be fixed with the correct application of the right sized hammer.

User avatar
scottieh
Financial
Financial
Posts: 471
Joined: Wed Mar 30, 2011 3:58 am
What Bike or Bikes Do You Own?: 1988 XT600Z 3AJ
1985 XT 600
Previously Owned Bikes: 1989 Yamaha Virago 750
1994 DR650
1980 Suzuki GR650
1997 KLR 250
1986 Honda Spree
Location: Salt Lake City

Re: Scott's 3AJ restore

Post by scottieh » Thu Jul 25, 2013 4:35 pm

Bought a used crank. The one I posted before was available to ship internationally and it was the right 3TB crank. It was a bit pricey with shipping but i'm just glad to get this engine out of a shop and back into a frame.
http://www.ebay.de/itm/Kurbelwelle-cran ... OU:US:3160

User avatar
GeoffD
A Very Friendly
A Very Friendly
Posts: 1522
Joined: Sun Mar 27, 2011 7:19 pm
What Bike or Bikes Do You Own?: 6 x 3AJ Teneres
2 x 1VJ Teneres
55W Tenere
XT660 Tenere 4MY
XTZ750 Super Tenere.... Ratty one
Triumph Tiger 955I
Triumph Thunderbird sport
55W Tenere
Kawasaki Versys 650
Suzuki GT750 Kettle
Previously Owned Bikes: Triumph Tiger Cub, Garelli Tiger Cross, Triumph Trophy 650, Honda CB250 G5, Honda CB750 K7, Yamaha DT175MX, Honda CB250 Super Dream, Yamaha RD350LC YPVS, Honda XR250, Yamaha XT600, Suzuki PE175, Yamaha YZ125, Yamaha RD500 V4, Yamaha XT600 Tenere (3AJ), Kawasaki ZX10, BMW R100GS PD, Honda XR600, Honda Varadero, Honda Africa Twin, Honda Transalp, Triumph Thunderbird, Ducati 900 Superlight FE, Ducati 750 SS, Honda Fireblade... all I can remember for now...
Location: Tenereland, North East England.

Re: Scott's 3AJ restore

Post by GeoffD » Mon Jul 29, 2013 2:44 pm

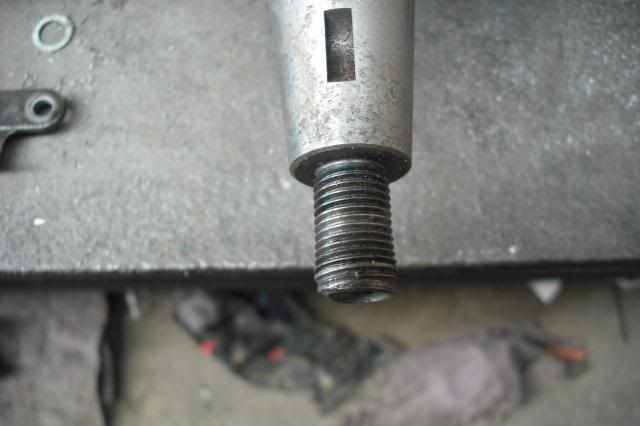

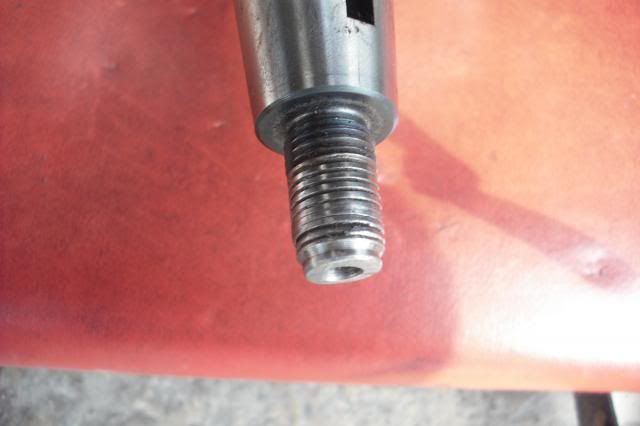

Glad you found one Scottie.... all of mine have damaged threads because of idiot bodgers who've tried & failed to get the flywheel off.....

You've seen the first one that I posted earlier in your thread, this is another...


I pulled my half on 4PT engine out of the box & found this......(god knows what's happened here, but the bolts that fasten the flywheel to the starter gear were
missing, so they've obviously tried & failed to get it off).... :flogging:


I got the flywheel of in a half hour....

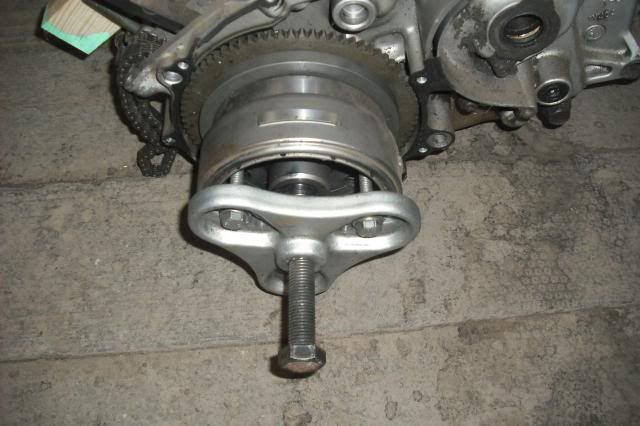

Fitted puller....



Tightened the puller on... very tight, poured a kettle full of boiling water on.....

Tightened it a bit more & it came off.... no probs....

So the 4PT looks like the easiest one to fix, just needs a new thread cutting & a nut, you're still welcome to it if you need it...

I do have another 3AJ bottom end but I don't really want to strip this one, got enough parts laid around the place & I need a crank for Tenere 4 anyway..
The future is not what it used to be....

User avatar
scottieh
Financial
Financial
Posts: 471
Joined: Wed Mar 30, 2011 3:58 am
What Bike or Bikes Do You Own?: 1988 XT600Z 3AJ
1985 XT 600
Previously Owned Bikes: 1989 Yamaha Virago 750
1994 DR650
1980 Suzuki GR650
1997 KLR 250
1986 Honda Spree
Location: Salt Lake City

Re: Scott's 3AJ restore

Post by scottieh » Mon Jul 29, 2013 10:08 pm

What is the puller you use? I would like to buy one but I've had problems with them snapping due to the the force of tightening the nut down. They were made of cheap composite metal, not solid steel. I'd like to find one made of solid steel.

User avatar
GeoffD
A Very Friendly
A Very Friendly
Posts: 1522
Joined: Sun Mar 27, 2011 7:19 pm
What Bike or Bikes Do You Own?: 6 x 3AJ Teneres
2 x 1VJ Teneres
55W Tenere
XT660 Tenere 4MY
XTZ750 Super Tenere.... Ratty one
Triumph Tiger 955I
Triumph Thunderbird sport
55W Tenere
Kawasaki Versys 650
Suzuki GT750 Kettle
Previously Owned Bikes: Triumph Tiger Cub, Garelli Tiger Cross, Triumph Trophy 650, Honda CB250 G5, Honda CB750 K7, Yamaha DT175MX, Honda CB250 Super Dream, Yamaha RD350LC YPVS, Honda XR250, Yamaha XT600, Suzuki PE175, Yamaha YZ125, Yamaha RD500 V4, Yamaha XT600 Tenere (3AJ), Kawasaki ZX10, BMW R100GS PD, Honda XR600, Honda Varadero, Honda Africa Twin, Honda Transalp, Triumph Thunderbird, Ducati 900 Superlight FE, Ducati 750 SS, Honda Fireblade... all I can remember for now...
Location: Tenereland, North East England.

Re: Scott's 3AJ restore

Post by GeoffD » Mon Jul 29, 2013 10:21 pm

scottieh wrote:What is the puller you use? I would like to buy one but I've had problems with them snapping due to the the force of tightening the nut down. They were made of cheap composite metal, not solid steel. I'd like to find one made of solid steel.

Mine is a fairly cheap universal puller from Halfords.... modified slightly to fit the XT flywheel...

http://www.halfords.com/webapp/wcs/stor ... yId_255216

I've stripped 7 or 8 now with no problems....
The future is not what it used to be....

User avatar
scottieh
Financial
Financial
Posts: 471
Joined: Wed Mar 30, 2011 3:58 am
What Bike or Bikes Do You Own?: 1988 XT600Z 3AJ
1985 XT 600
Previously Owned Bikes: 1989 Yamaha Virago 750
1994 DR650
1980 Suzuki GR650
1997 KLR 250
1986 Honda Spree
Location: Salt Lake City

Re: Scott's 3AJ restore

Post by scottieh » Sun Sep 29, 2013 7:31 pm

Well it's finally happened. My bike is up and running again! After 7 months of waiting on the world's slowest mechanic to replace the crankshaft, he finally finished the work (with a little supervision to do it right) and yesterday I rode it for the first time!
[youtube]WKCB5np890k[/youtube]

I had taken it home to start for the first time but because he put the shift shaft back in the bike incorrectly, I couldn't downshift. So we had to take it apart again and reset it. It's just as difficult to start as ever. So much compression. And because of the kick start only aspect of it from now on (unless I replace the cases), it's always going to be tough. My choke on the dash doesn't stay engaged if I let go of the knob so it's kind of a pain. But it starts. And runs. And doesn't make awful clanking noises. And that's all I care about right now. :star:

I'm going to replace the indicators and put both mirrors on. The front fairing still needs paint and stickers and the tank leaks through a hole at the top. The frame needs to be tapped where the skid plate mounts, and the engine cover paint is wearing off. I could nitpick this thing to death but for now I'm going to break it in and ride it, since all I've been doing for the past 1.5 years is nitpicking it. :oilleak:
